XB LED Headlights | BRZ

Give your first-generation coupe a lighting upgrade, not just a different face

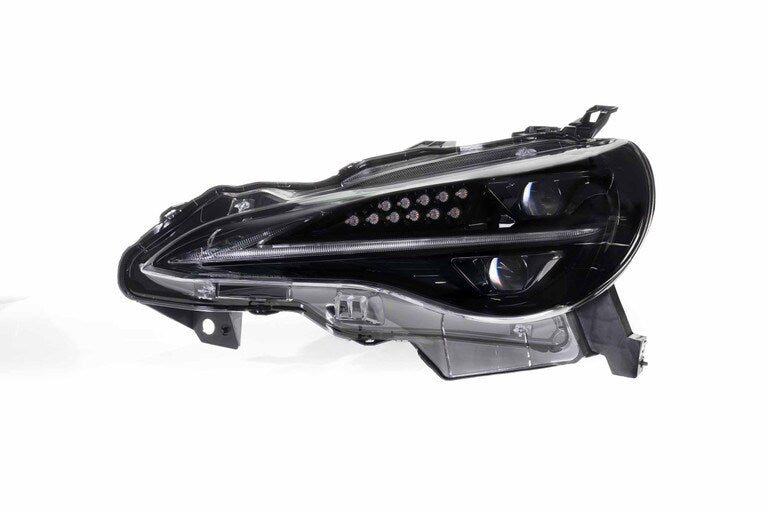

If your BRZ, FR-S, or 86 still has its factory headlights, you know the stock look is part of the car’s original character. But when your build calls for LED projector lighting and a more modern light signature, a bulb swap alone does not change the complete assembly. Morimoto XB Gen II headlights combine dual Morimoto Bi-LED optics, white daytime running lights, and selectable sequential or standard turn signals in a matched replacement pair.

Start the car before an evening drive and the DRL optics wake up in a multi-stage sequence. Once you are on the road, the real reason to choose this package is its integrated low- and high-beam optics, not just the startup show. Confirm your factory connectors and exact application before ordering, then take the time to check beam aim after installation.

Who this is for

• Owners of compatible first-generation Subaru BRZ, Toyota 86, and Scion FR-S models who want a complete LED headlight assembly upgrade.
• Drivers looking for white DRLs, a gloss-black interior, and a choice of sequential or standard turn-signal operation.
• Left-hand-drive builds that match the listed US-spec application and factory connections.

Who this is not for

• Right-hand-drive applications. The listed traffic pattern is LHD.
• Buyers who only need replacement bulbs or want to retain the original factory headlight appearance.
• Later-generation cars or non-US-spec vehicles without independently confirmed compatibility.

What the upgrade brings

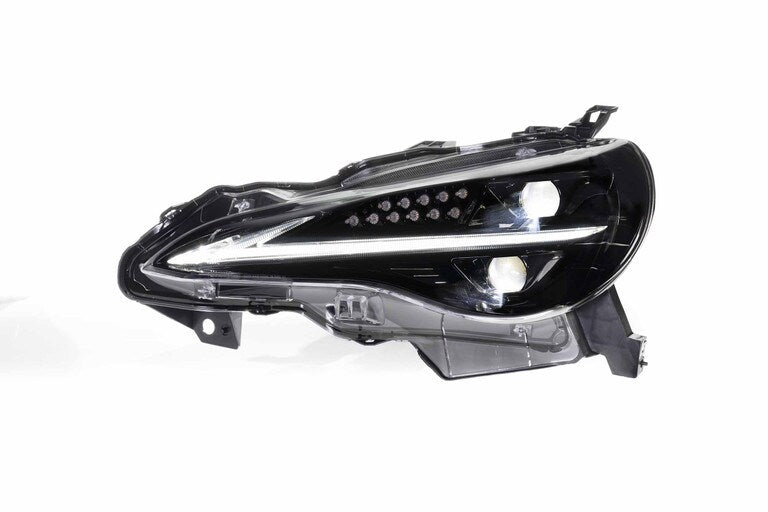

• Integrated LED projectors: Dual high-output Morimoto Bi-LED optics provide the listed low- and high-beam functions as part of a complete assembly.

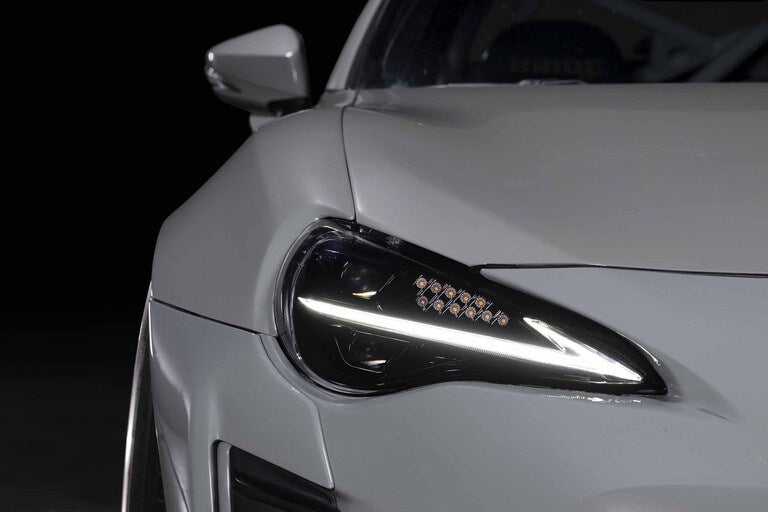

• A distinct daytime signature: Textured 3D DRL and turn-signal optics are designed to enhance intensity at a distance, day or night.

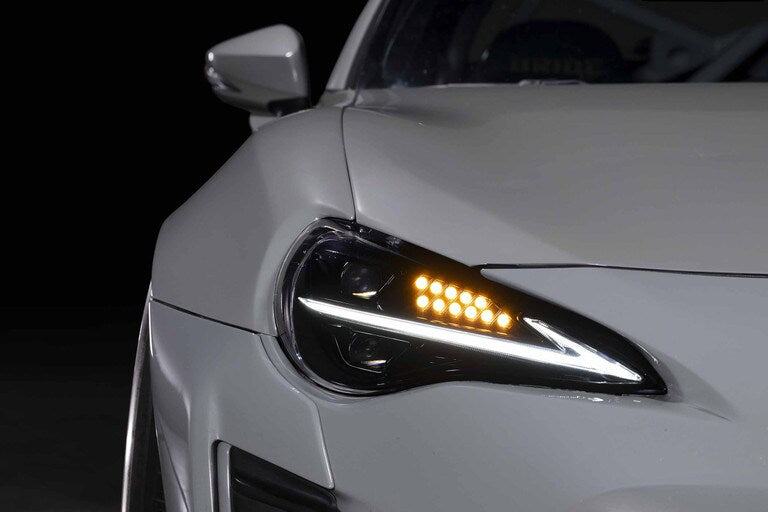

• Your choice of signaling: Select sequential or standard turn-signal operation rather than assuming the animated setting is mandatory.

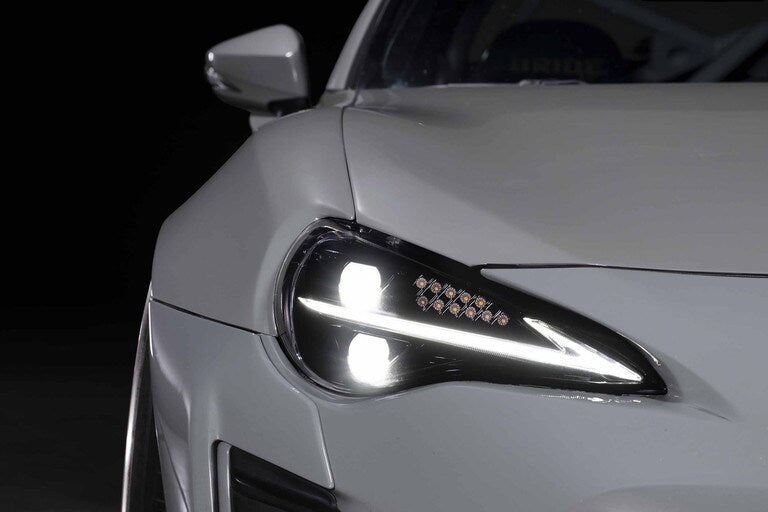

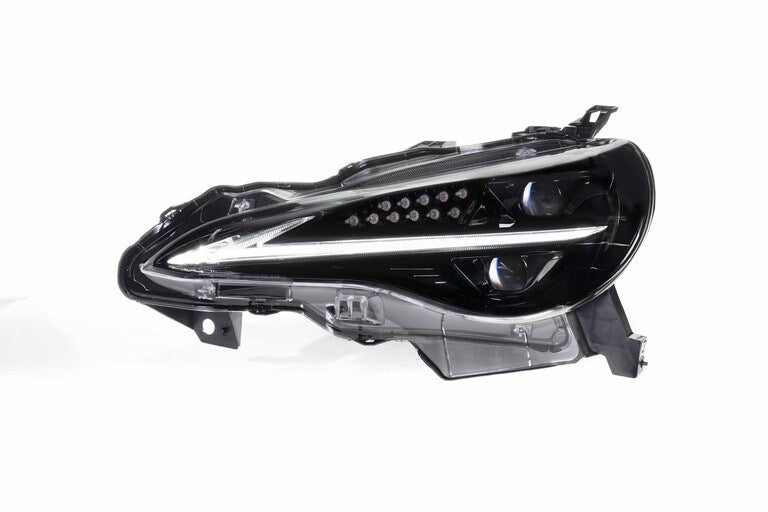

• Startup detail: The DRLs automatically illuminate through a multi-stage sequence when the car starts.

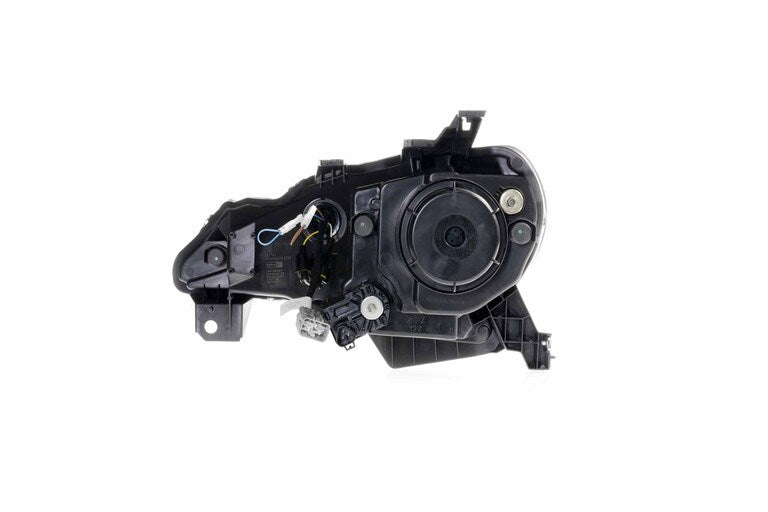

• Factory mounting layout: Designed to use the original mounting points and align with the surrounding bodywork.
• Materials chosen for the job: ABS housings and UV-resistant polycarbonate lenses with hardened anti-UV protection.

Plan the installation before taking the car apart

Match your model year, existing connectors, and OE part number to the application below. The package includes headlight and turn-signal adapters, a fuse tap, and a DRL harness, so follow the guide for the complete wiring procedure rather than treating these as a bulb-only replacement. Verify low beam, high beam, park lights, DRLs, and both turn signals, then check the headlight aim before night driving.

BRZ headlight installation guide

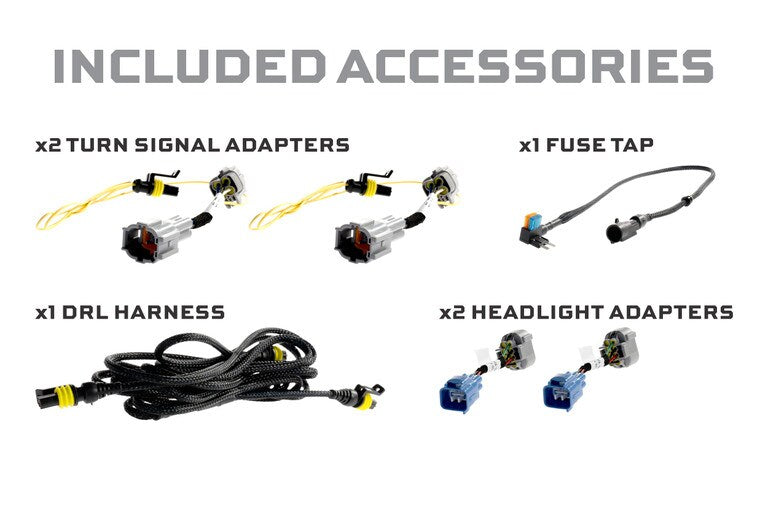

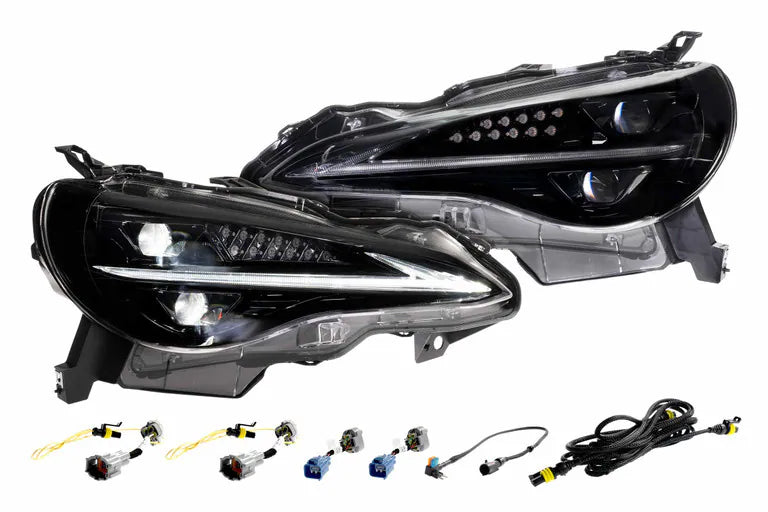

What is included

• 2 headlights: one pair of Subaru BRZ XB LED Gen II assemblies.
• 2 headlight adapters.
• 2 turn-signal adapters.
• 1 fuse tap.
• 1 DRL harness.
• Listed warranty: five years.

Technical specifications

• Optics: dual Morimoto Bi-LED.
• Traffic pattern: left-hand drive (LHD).
• Input: Toyota/Subaru multi-pin.
• DRL color: white only.

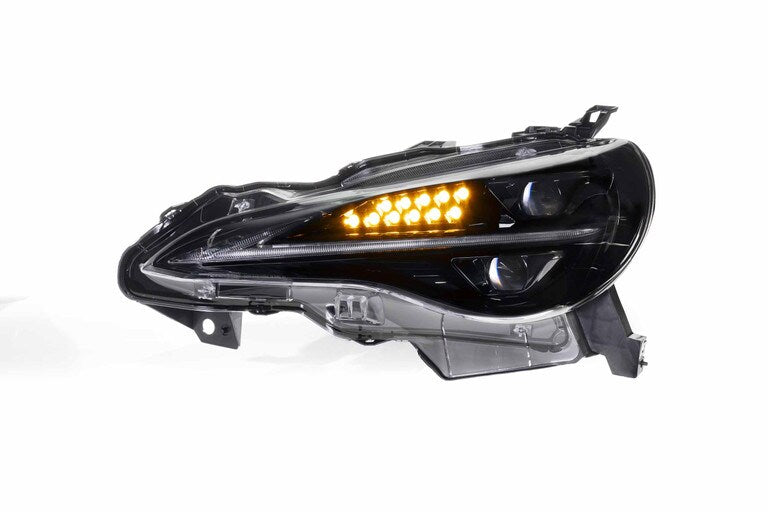

• Turn signals: sequential or standard.
• Functions: low beam, high beam, park, DRL, and turn signal.
• Interior finish: gloss black.
• Housing material: ABS plastic.
• Lens material: UV-resistant polycarbonate.
• Lens coating: hardened anti-UV protection.

Listed fitment and OE references

The supplied application list specifies the following. Model naming and model-year availability vary by market, so confirm your exact car and factory lighting configuration before ordering rather than relying on the year range alone.

• ✅Subaru BRZ: 2012–2020, all as listed.
• ✅Toyota 86: 2012–2020, all as listed.
• ✅Scion FR-S: 2012–2020, all as listed.
• Replaces listed OE part numbers: SU00302502, SU00305140, SU00302501, SU00305139, 840002CA120, 84002CA130, 84002CA131.

US-spec application: These housings were designed for and tested on US-spec vehicles. Compatibility in other countries can vary and is not guaranteed or always known. Verify fitment before ordering.
