4Banger LED Fog Lights | F-150

Need factory-location fog lighting without a bulky universal pod?

The Morimoto 4Banger kit replaces the factory fog lights on listed Ford applications with a pair of compact wide-beam pods. The package includes vehicle-specific brackets, stainless hardware, and a plug-and-play connection kit. Choose the NCS or HXB pod set, in white or yellow, based on the beam and output you need.

Who this is for

• Owners of the listed Ford F-150, Expedition, or Ranger applications
• Drivers looking for a wide fog beam with included mounting brackets and factory-harness adapters
• Customers who can verify their fog-lamp configuration and choose from the four NCS/HXB white/yellow options

Who this is not for

• Vehicles outside the listed fitment or fog-light configuration
• F-150 owners who have not confirmed the extra mounting bracket required for 2007–2010
• Customers assuming every color/beam option has the same performance or compliance specification

Choose a pod option

• 2.0 NCS LED Pod White Set
• 2.0 NCS LED Pod Yellow Set
• 2.0 HXB LED Pod White Set
• 2.0 HXB LED Pod Yellow Set

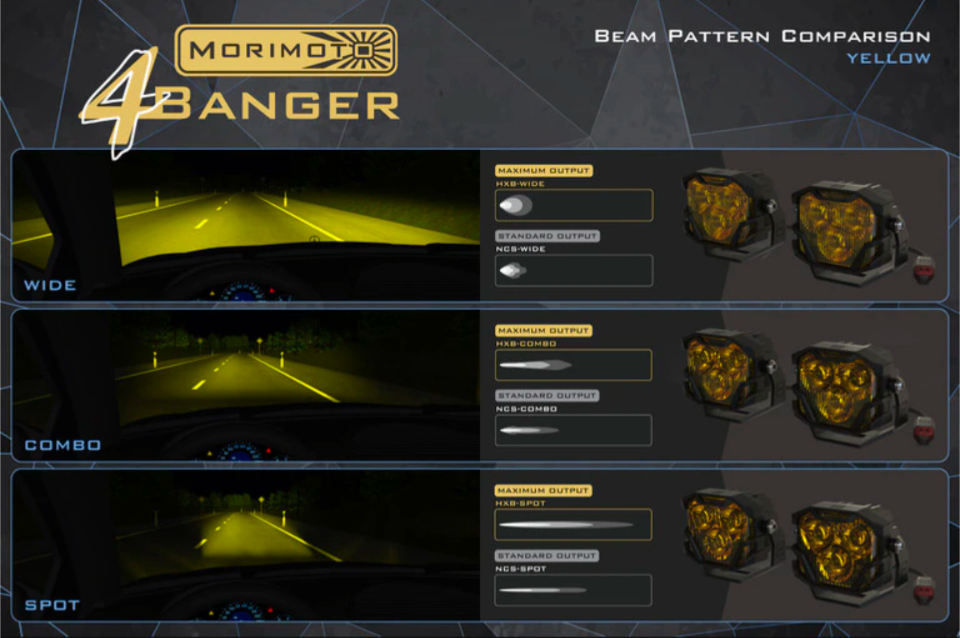

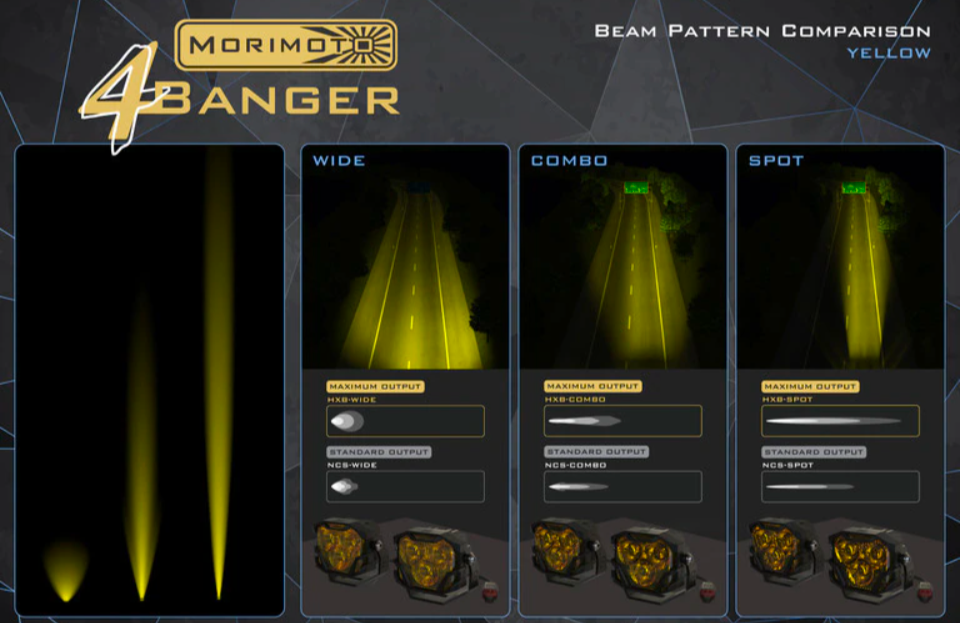

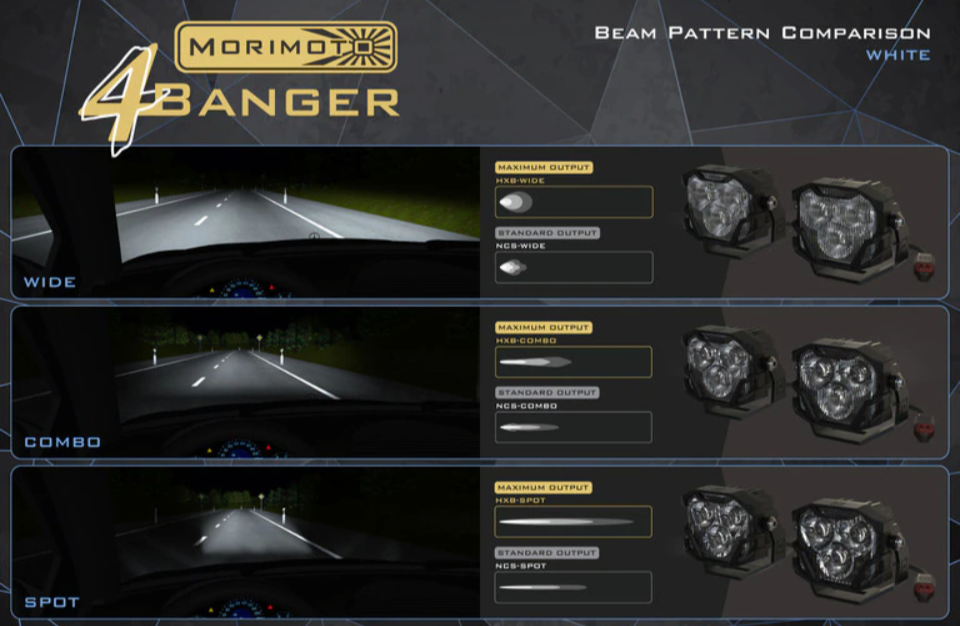

The listing identifies the NCS SAE Wide Beam as SAE-compliant for fog-light use. Do not assume that compliance statement applies to every beam/color configuration; confirm the selected option and intended use.

What comes in the kit

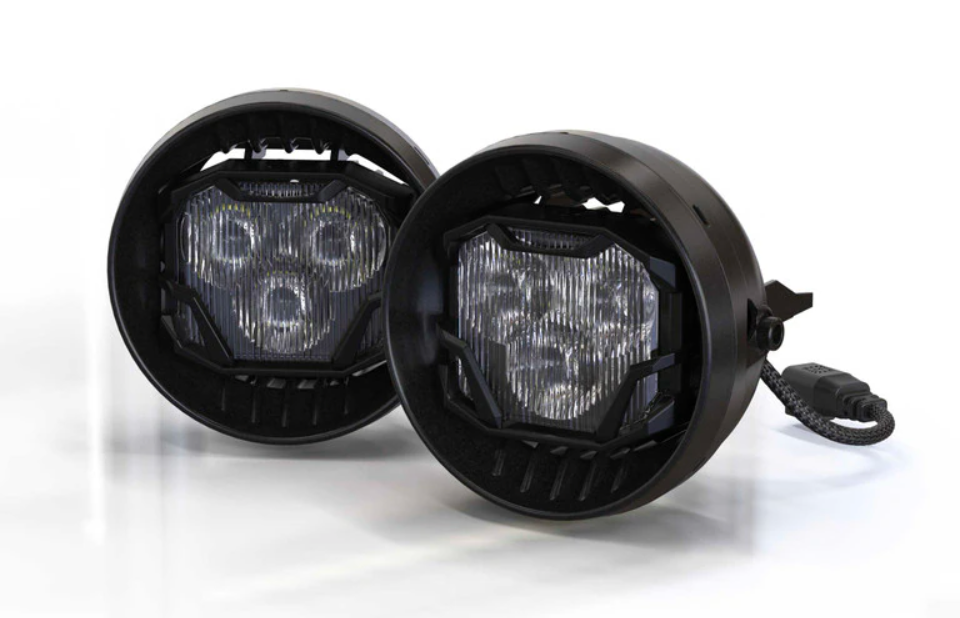

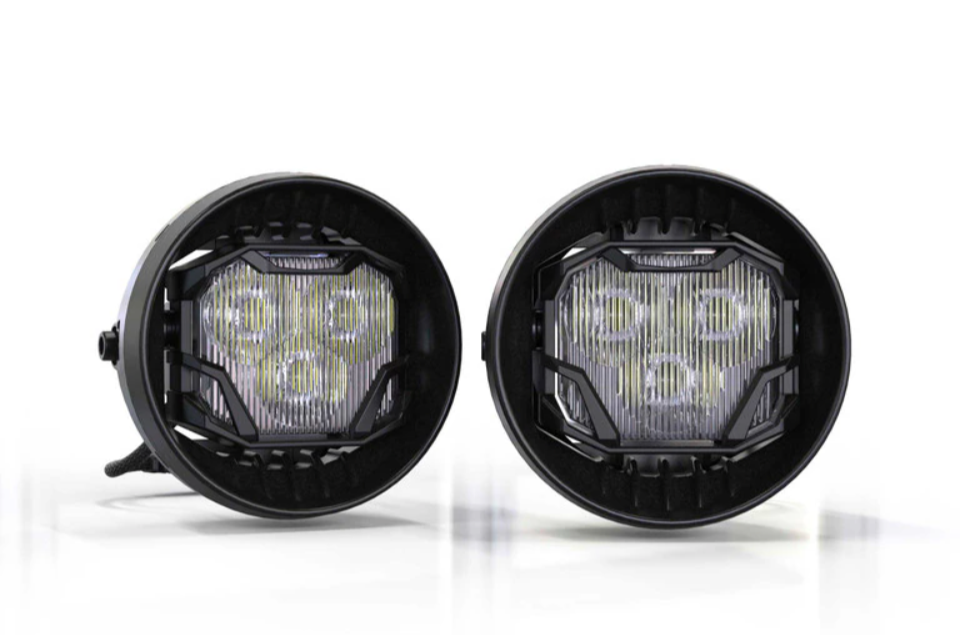

• Two Morimoto 4Banger LED pods
• Two BAF020 fog-light brackets
• Stainless-steel hardware pack
• Plug-and-play connection kit

Fitment

✅Ford Expedition: 2007–2015

✅Ford F-150: 2004–2006 with round fog lights

✅Ford F-150: 2007–2010, requires one OEM BL3Z15266B mounting bracket

✅Ford F-150: 2011–2014

✅Ford Ranger: 2008–2011

Replacement Ford part numbers: AL1Z-15200-BCP and BL3Z-15200-ACP.

Specifications per pod

• Input voltage: 9–18V DC
• Stabilized power: 15.6W NCS; 42W HXB
• Current: 1.5A NCS; 3.2A HXB
• Raw peak luminosity: 1,300 lumens NCS; 3,000 lumens HXB
• Intensity: NCS Wide Yellow 8,680 cd after warm-up (86.8 lux at 10m); NCS Wide White 14,400 cd after warm-up (144 lux at 10m); HXB Wide White 22,400 cd at 20 minutes / 21°C ambient (224 lux at 10m)
• Color temperature: 2400K NCS yellow; 2700K HXB yellow; 5600K NCS white; 5700K HXB white
• Light sources: Nichia NCSY131F / NCSW131F or Osram HX Boost, depending on option
• Dimensions: 82mm W × 67mm H × 60mm D
• Connector: Overmolded Deutsch DT 2-pin
• Lens: Makrolon LED polycarbonate
• Housing: Powder-coated die-cast aluminum

Aim and install with care

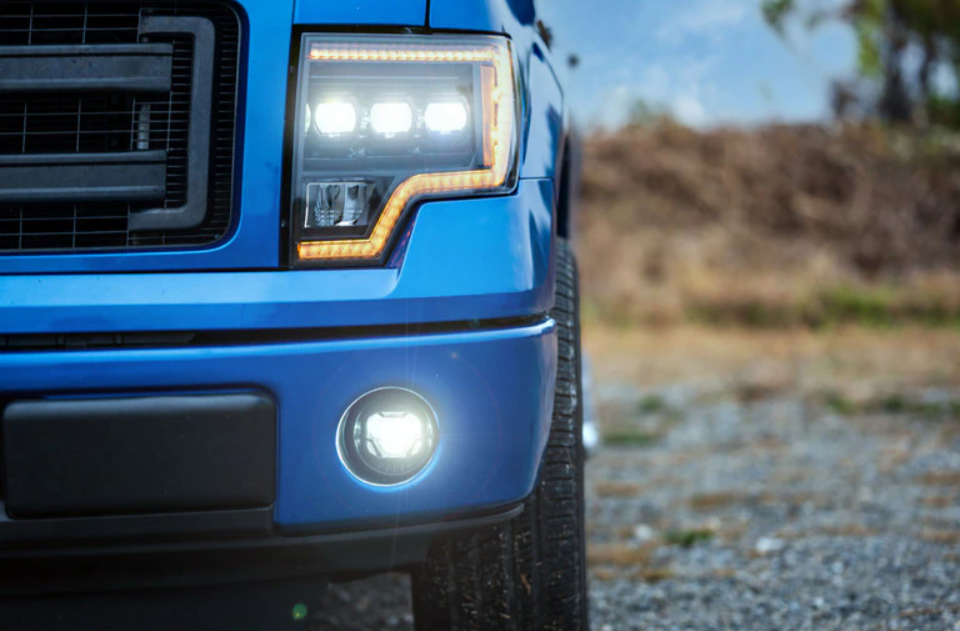

The brackets provide ±6 degrees of vertical adjustment for aiming. The design includes ductwork to help cool the pods. Before ordering, check your existing fog-light shape and the additional bracket requirement for 2007–2010 F-150s. Aim the lights so the beam is directed appropriately and does not glare into oncoming traffic.

Customer payoff: A complete two-pod fog-light conversion with the brackets, adapters, exact Ford fitment notes, and option-specific beam details together before you start the install.

View the Morimoto 4Banger F-150 installation guide
